Low Profile Kits 70m2 ( 8 port )

£3,189.99 - Ex VAT £2,658.33

Description

Low Profile Kits 70m2 ( 8 port )

This kit contains all items needed to install our low profile Retro18 overlay system.

An Ultra low profile fibre board the same height as a 5p coin (18mm). These panels are engineered gypsum with 60% recycled content board, this gives a strong and quickly installed dry screed system.

The overlay boards are to be laid onto a flat surface, they can either be screwed or glued to the surface beneath (Screws / adhesive not supplied).

This system can be installed over any existing concrete or wooden floor, this is generally installed over a 6mm Superfoil insulation giving the overall build up pf 24mm.

The boards are supplied as straights, and provided with end panels for the pipe returns. The boards have a high thermal conductivity so heating response times are quicker and energy use is reduced.

Any floor can be laid over the system following a thin layer of self-levelling compound (Not supplied), including carpet, vinyl, and linoleum. Laminates, real wood and engineered floors can be fitted as ?floating floors? directly over the panel.

Our Retro18 kit provides temperature control of underfloor heating circuits using thermostatic blending valve with circulating pump.

All lur kits include an easy-fit pre-assembled manifold with pump and blending valve.

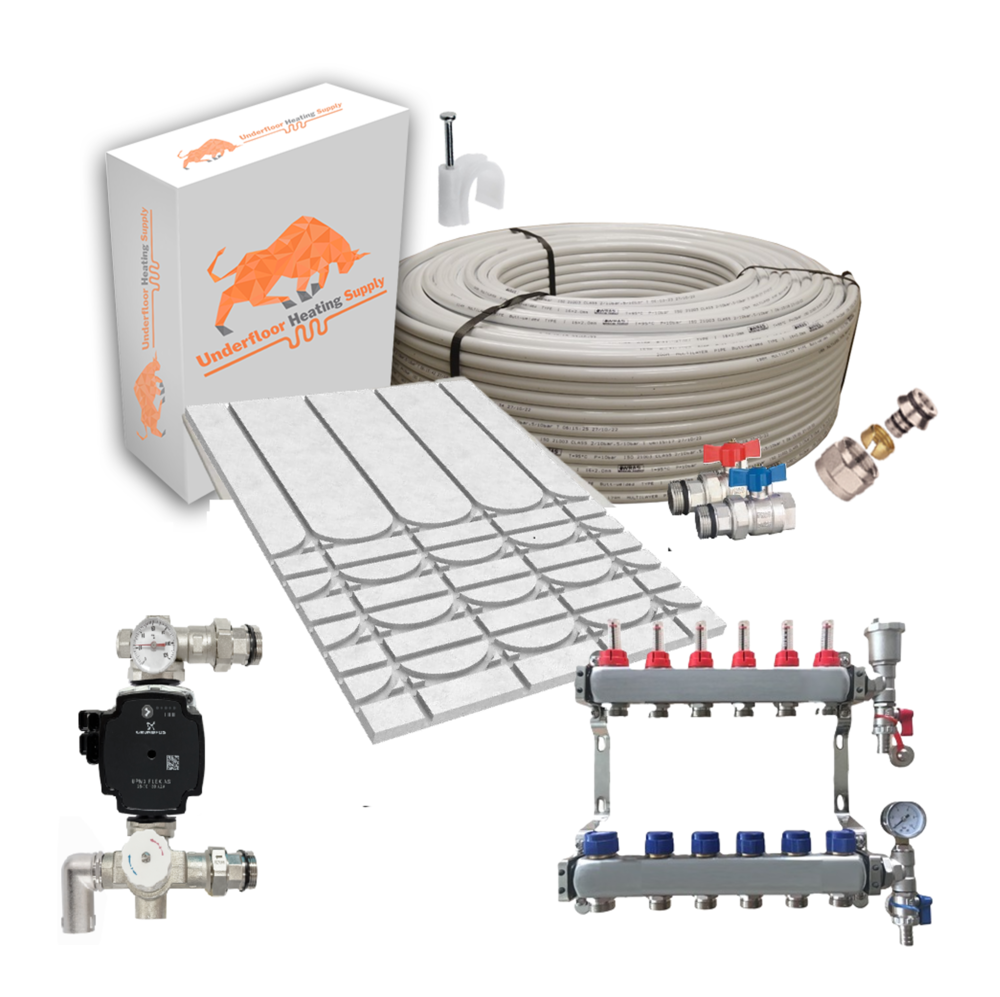

Kit includes:

      • 8port stainless steel manifold

      • Easy fit manifold control pack with Grundfos A rated pump

      • High limit safety sensor

      • Air vents

      • Fill & drain points

      • Isolation valves

      • 600m 12mm Pert Underfloor heating pipe (Enough to cover up to 70m2 at 150mm c/c)

      • 300 12mm nail clips

      • 145 Retro18 boards & end returns

      • Instructions manual

Actuators are only required if you need to control zones separately, 1 per port would be required.
Please note wireless thermostats (Slimline RF & NeoAir) will need a wireless wiring centre (UH8-RF) and for all Neo controls to be controlled via app you will need to purchase a Neo Hub

Additional information

Overlay Kit Size

24m2 (3 x Ports ) ?1199.99, 45m2 (5 x Ports ) ?1999.99, 70m2 (8 x Ports ) ?2899.99, 100m2 (10 x Ports ) ?3799.99

6mm Superfoil UF insulation

24m2 ?259.00, 45m2 ?519.99, 70m2 ?779.99, 100m2 ?1169.99

Actuators

1 x 13.99, 2 x 13.99, 3 x 41.97, 4 x ?55.96, 5 x ?69.95, 6 x ?83.94, 7 x ?97.93, 8 x ?111.92, 9 x ?125.91, 10 x ?139.90, 11 x ?153.89, 12 x ?167.88

Wiring Centre

Wiring Centre: UH8-RF 8 Zone wireless wiring centre ?105.99, Reliance 8 zone wiring centre ( 240 v) ( ?64.99), UH4 x 4 cutter & reaming tool ?52.99, UH8 x 8 cutter & reaming tool ?105.99, Junction box ( single zone install only ) ?10.99

Toolkit

Pipe cutting & reaming tool ?9.99
